Auto-lifting Vacuum Homogenizer Mixer CE ISO Vacuum Homogenizer Machine Screen Cleaner Cream Paste Making Mixing Emulsifying Machine Mixer Equipment

Emulsification machines are widely used in the production of various ointments, cosmetics, daily cosmetics, jams and other fine chemical equipment required.



The vacuum homogeneous emulsifier equipment is a non-standard customized equipment, which is reasonably configured according to the customer’s process, and is suitable for products that need to be emulsified and stirred in a vacuum state. It can be equipped with low-speed scraping wall stirring for emulsifying and stirring of high-viscosity products. It can be equipped with a high shear emulsifier, suitable for processes such as dispersion, emulsification, homogenization, stirring and mixing. The vacuum emulsifier is mainly composed of a water phase pot, an oil phase pot, an emulsification stirring main pot, a vacuum system, a lifting system (optional), an electrical control system (PLC optional), and an operating platform.

Edit Content
Auto-lifting Vacuum Homogenizer Mixer CE ISO Vacuum Homogenizer Machine Screen Cleaner Cream Paste Making Mixing Emulsifying Machine Mixer Equipment



ModelVolumeMotorBlender SpeedHomogenizer PowerHomogenezer SpeedVacuum Pump Power
GY-50L50L0.55KW0-62r/min3KW0-3200rpm1.5KW
GY-100L100L1.1KW0-62r/min4KW0-3200rpm1.5KW
GY-200L200L2.2KW0-62r/min5.5KW0-3200rpm2.2KW
GY-500L500L4KW0-62r/min7.5KW0-3200rpm3KW
GY-1000L1000L5.5KW0-62r/min11KW0-3200rpm4KW
GY-2000L2000L15KW0-62r/min18.5KW0-3200rpm5.5KW
Note: The parameters on this form are for reference only, and the actual product shall prevail





ModelMain tankWater tankOil tankMain tank power(KW)water tank powerOil tank powerHydraulic system(KW)Vacuum pump power(kw)
Volumewall scrapinghomogenizer
200L200L160L100L2.25.51.10.750.752.2
300L300L240L150L37.51.51.51.52
500L500L400L250L47.52.21.52.52.2
1000L1000L800L500L5.51132.234
Note: The parameters on this form are for reference only, and the actual product shall prevail



Product Details

Auto-lifting Vacuum Homogenizer Mixer CE ISO Vacuum Homogenizer Machine Screen Cleaner Cream Paste Making Mixing Emulsifying Machine Mixer Equipment

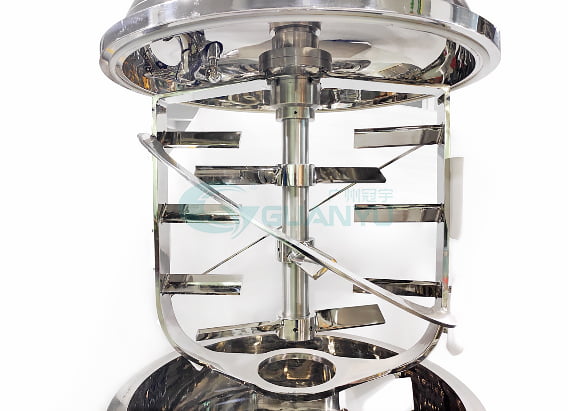

Mixing paddle

———————————

Frequency conversion speed regulation 0-62r/min, the shape of the blades will be designed according to your materials

Auto-lifting Vacuum Homogenizer Mixer

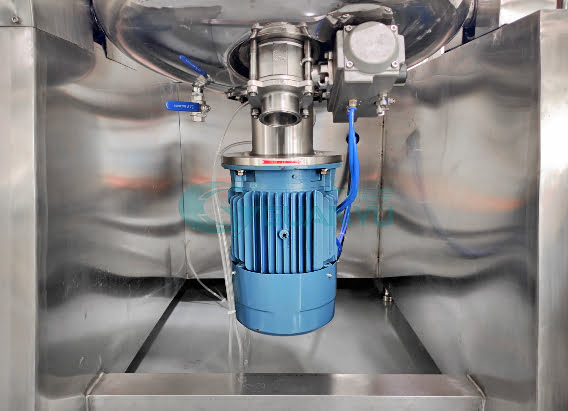

Homogenizer

——————————

Frequency conversion speed regulation 0-3000r/min, homogeneous shearing head high-speed shearing materials, so that the materials are completely broken and mixed!

Auto-lifting Vacuum Homogenizer Mixer

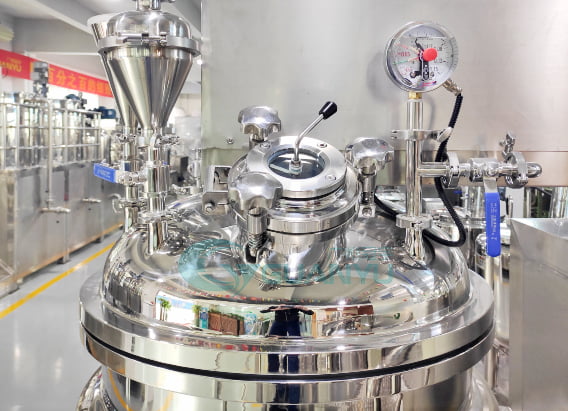

Hermetic vacuum

————————————

Defoaming throught the vacuum system can meet the requirements for the aseptic and high standard product.

Auto-lifting Vacuum Homogenizer Mixer

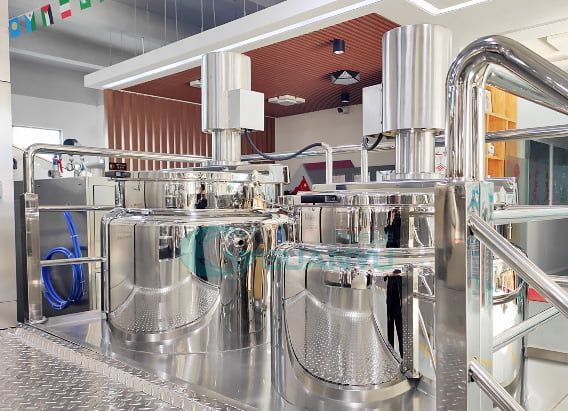

Oil-water pot

————————————

Pre-treatment System Water phase and oil phase pot to pre-heat and disperse the raw materials, then transfer them to main pot to begin production.

Auto-lifting Vacuum Homogenizer Mixer

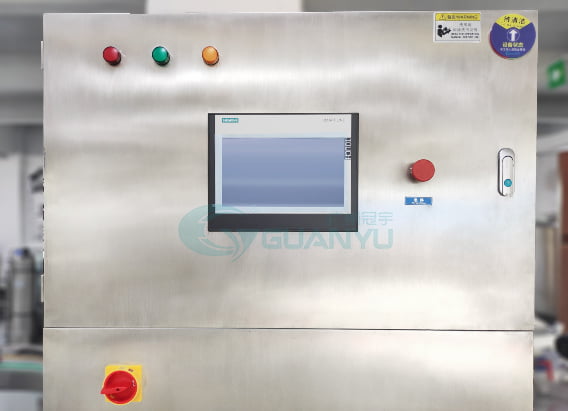

Console

——————————

The control panel displays and controls the equipment temperature, mixing, homogenization, pressure data, etc. in real time.

Auto-lifting Vacuum Homogenizer Mixer

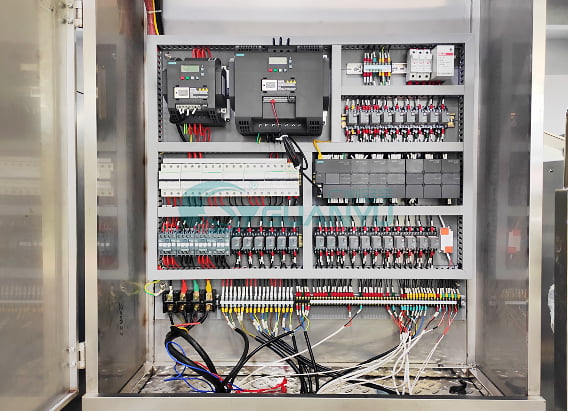

Electric box

——————————

Use internationally renowned brand components to ensure the quality of the equipment and longer service life.

Scope of application

Auto-lifting Vacuum Homogenizer Mixer



The main components

Auto-lifting Vacuum Homogenizer Mixer
