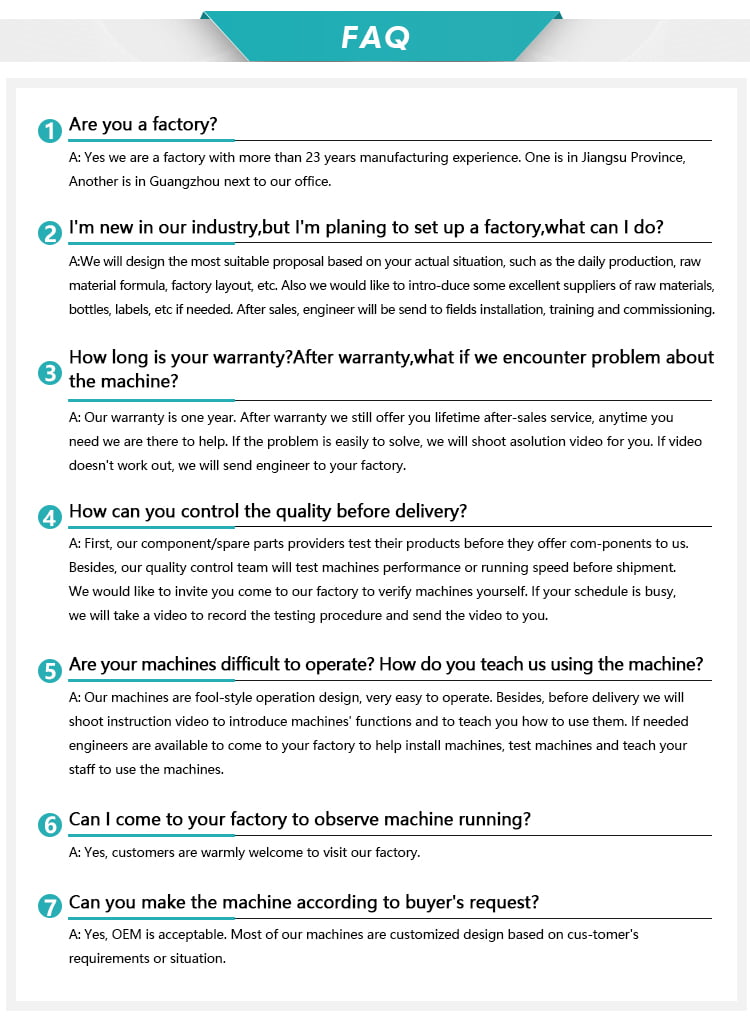

FAQ
Advantages
About GUANYU
After a long period of exploration,Guangzhou Guanyu Machinery Co.,Ltd has launched Guanyu Cleanser Essence Detergent Homogenizer Hand Soap Shampoo Automatic Tank Liquid Cleaning Mixing Agitator Cosmetic Mixer. Modern technologies innovate means are adopted for the flawless manufacturing of Guanyu Cleanser Essence Detergent Homogenizer Hand Soap Shampoo Automatic Tank Liquid Cleaning Mixing Agitator Cosmetic Mixer.So far, the application areas of the product have been expanded to the Mixing Equipment. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Guangzhou Guanyu Machinery Co.,Ltd firmly believe that we will satisfy the growing needs of every customer.
Mixer Type: | Agitator | Barrel Volume (L): | 500 |
Material Processed: | Chemicals, Food, Medicine, cosmetic | Max. Loading Volume (L): | 500 L |
Range of Spindle Speed(r.p.m): | 1 – 63 r.p.m | Max. Loading Capacity: | 5000 |
Weight (KG): | 496 KG | Material: | SUS304L, SUS316L, Stainless steel |
Condition: | New | Product Type: | Cosmetic |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Heating/Mixing/Dispersing/Homogenizing/etc |
Place of Origin: | Guangdong, China | Brand Name: | GUANYU |
Voltage: | 220V/380V/Customized | Dimension(L*W*H): | 1510*1310*2250mm |
Power (kW): | 11.5 kW | Warranty: | 1 Year |
Key Selling Points: | Long Service Life | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Cosmetic factory |
Showroom Location: | India, Thailand | Marketing Type: | Ordinary Product |
Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
Warranty of core components: | 1 Year | Core Components: | Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Other, Bearing, Engine |

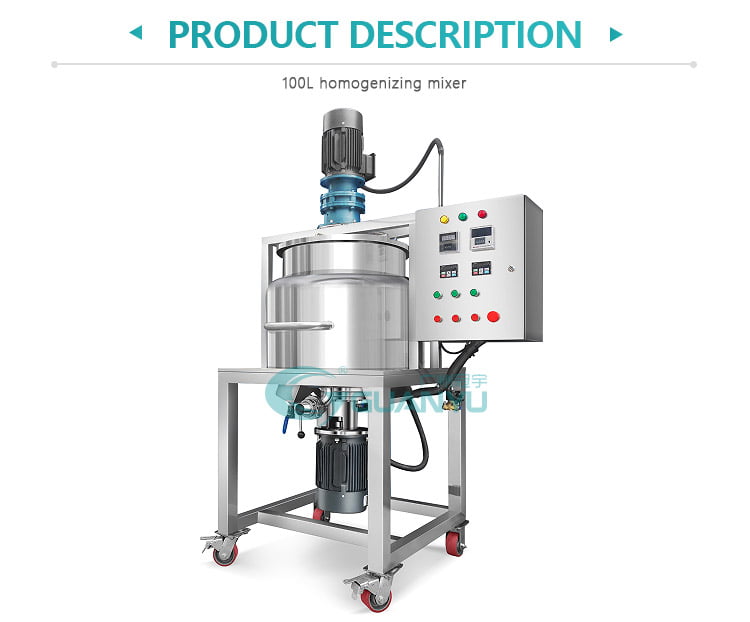

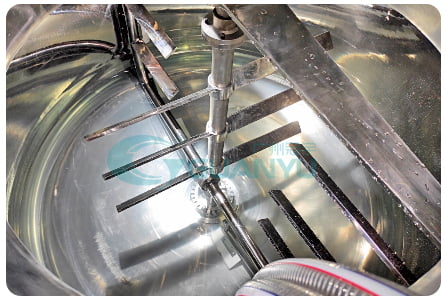

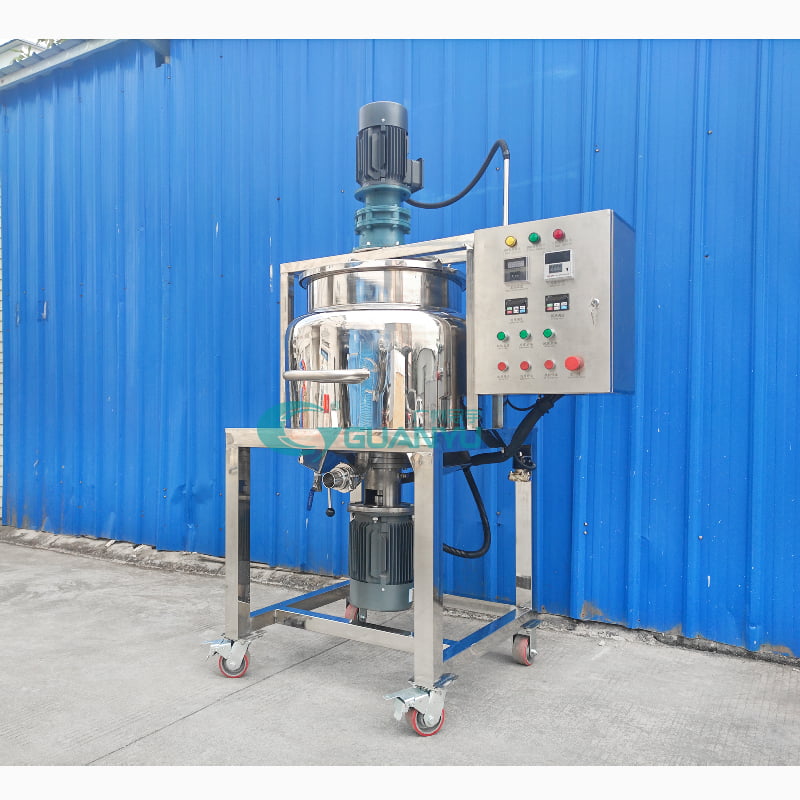

Product name: | Mixing tank | Agitator: | Anchor Agitator with Scraper |
Agitating speed: | 0~63rpm | Heating method: | Electric Heating/Steam Heating |

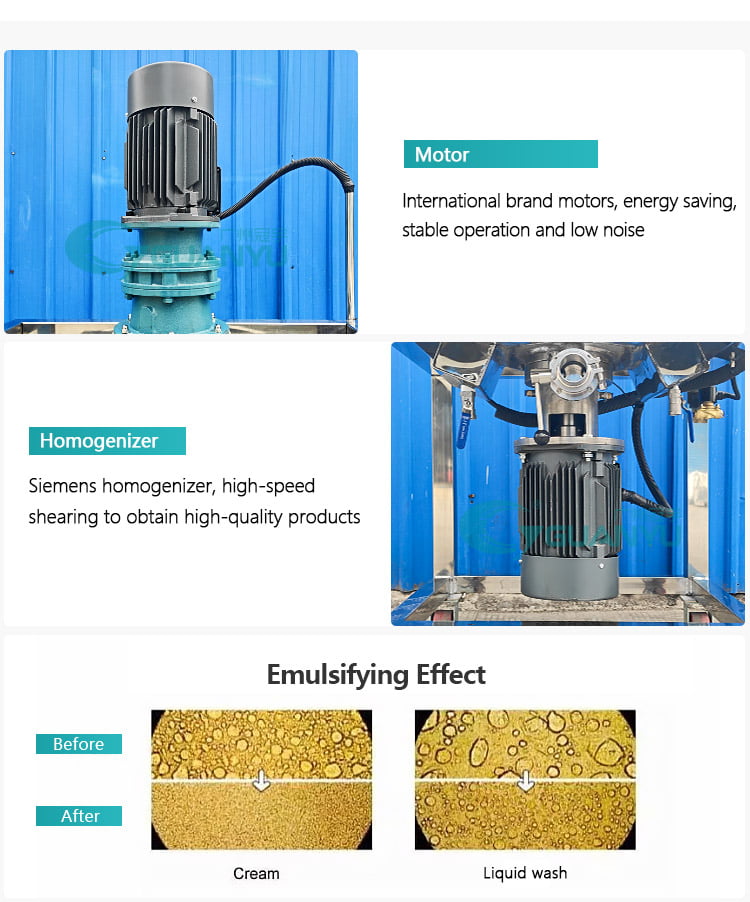

Function: | Heating/Mixing/blending/Homogenizing/etc | Agitator Motor: | SIEMENS Brand/ABB Brand |
Control: | Electronic Control | Application scope: | Cosmetic/Chemical/Shampoo/Liquid soap/Detergent/etc |
Capacity: | 50-5000L |
Model | Effective | Stirring power and speed | Homogeneous power and speed | Heating power | ||||||||||
Capacity | KW | R/MIN | KW | R/MIN | Electric heating | Steam heating | ||||||||
GY-50 | 50 | 0.75 | 0-65 | 3 | 3600 | 6KW | Steam heating energy conservation and environmental protection, selected according to need | |||||||
GY-100 | 100 | 1.5 | 0-65 | 1.5 | 3600 | 12KW | ||||||||
GY-150 | 150 | 1.5 | 0-65 | 1.5 | 3600 | 12KW | ||||||||
GY-200 | 200 | 1.5 | 0-65 | 3 | 3600 | 18KW | ||||||||
GY-300 | 300 | 1.5 | 0-65 | 3 | 3600 | 18KW | ||||||||
GY-500 | 500 | 2.2 | 0-65 | 4 | 3600 | 27KW | ||||||||
GY-1000 | 1000 | 4 | 0-65 | 7.5 | 3600 | 36KW | ||||||||
GY-1500 | 1500 | 4 | 0-65 | 11 | 3600 | 45KW | ||||||||
GY-2000 | 2000 | 5.5 | 0-65 | 11 | 3600 | Recommend steam heating | ||||||||
GY-3000 | 3000 | 7.5 | 0-65 | 15 | 3600 | |||||||||
GY-5000 | 5000 | 11 | 0-65 | 22 | 3600 | |||||||||
The parameters for reference ONLY, all the machines can be customized accordingly. |

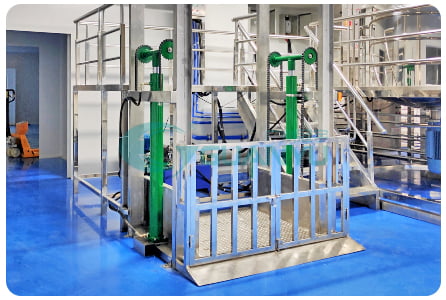

can be used to transport heavy materials
to the platform for the next operation.

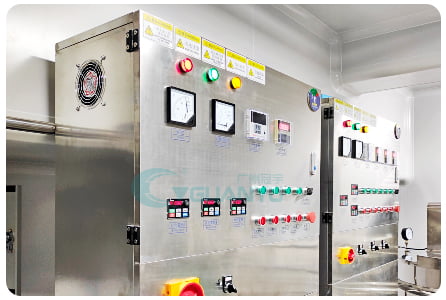

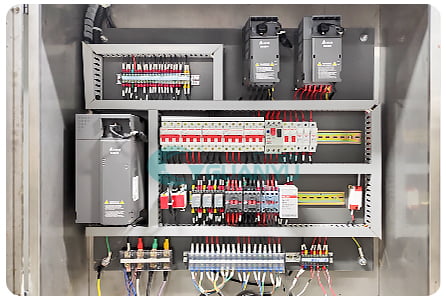

the equipment temperature, mixing,
homogenization, pressure data, etc. in real
time.
( Optional PLC control )

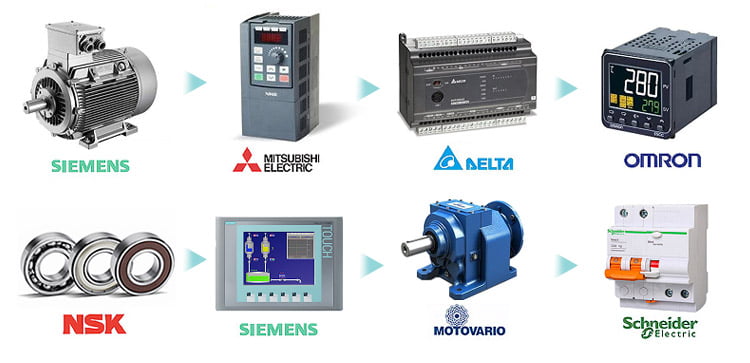

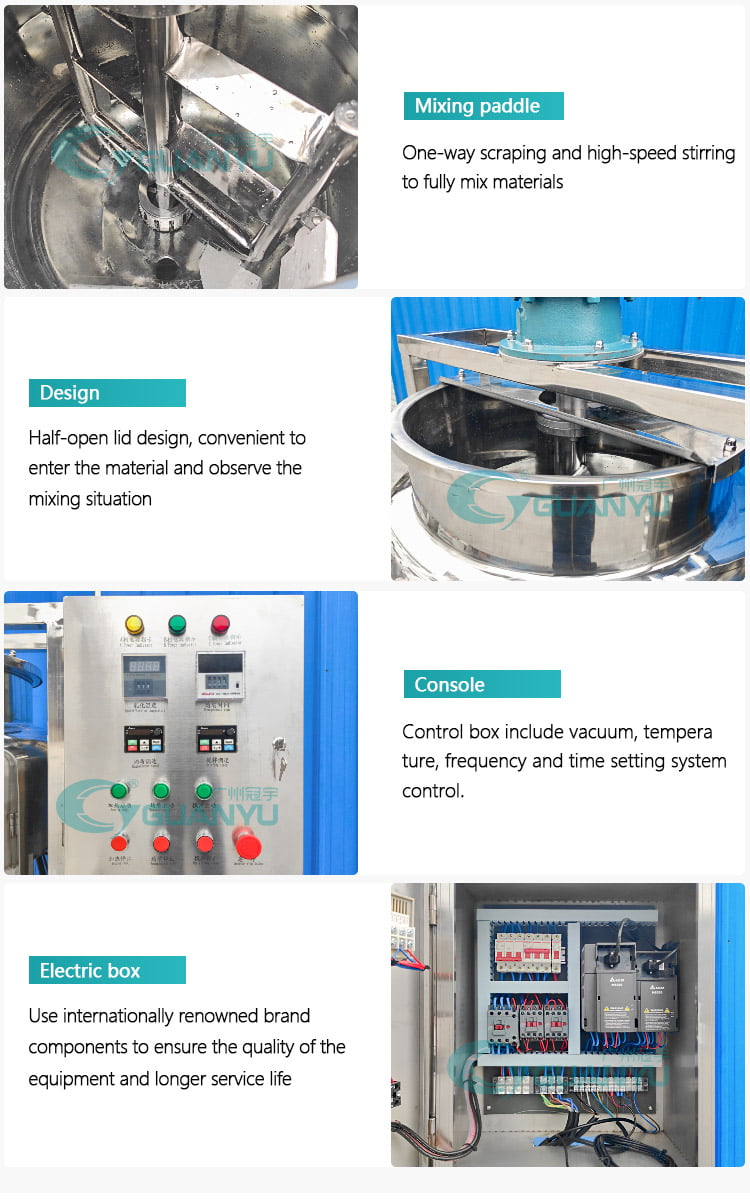

components to ensure the quality of the
equipment and longer service life

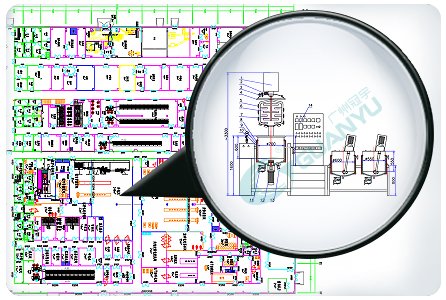

requirements and provide one-stop solutions.
