Stainless Steel Mixer Machine Conditioner Shampoo Stir Making Machine Detergent Homogenizer Mixin
Model | Effective Capacity | Stirring power and speed | Homogeneous power and speed | Heating mode | |||
KW | r/min | KW | r/min | Electric heating | Steam heating | ||
GY-50 | 50 | 0.75 | 0-65 | 3 | 3500 | 6kw | Steam heating enerayconservation and environment
al protection,selected according to need. |
GY-100 | 100 | 1.5 | 0-65 | 1.5 | 3300 | 12kw | |
GY-150 | 150 | 1.5 | 0-65 | 1.5 | 3300 | 12kw | |
GY-200 | 200 | 1.5 | 0-65 | 3 | 3000 | 18kw | |
GY-300 | 300 | 1.5 | 0-65 | 3 | 3000 | 18kw | |
GY-500 | 500 | 2.2 | 0-65 | 4 | 3000 | 27kw | |
GY-1000 | 1000 | 4 | 0-65 | 7.5 | 3000 | 36kw | |
GY-1500 | 1500 | 4 | 0-65 | 11 | 3000 | 45kw | |
GY-2000 | 2000 | 5.5 | 0-65 | 11 | 2500 | Recommended sandwich seam heating | |
GY-3000 | 3000 | 7.5 | 0-65 | 15 | 1500 | ||
GY-5000 | 5000 | 11 | 0-65 | 22 | 1500 | ||
Note: The parameters on this form are for reference only, and the actual product shall prevail |

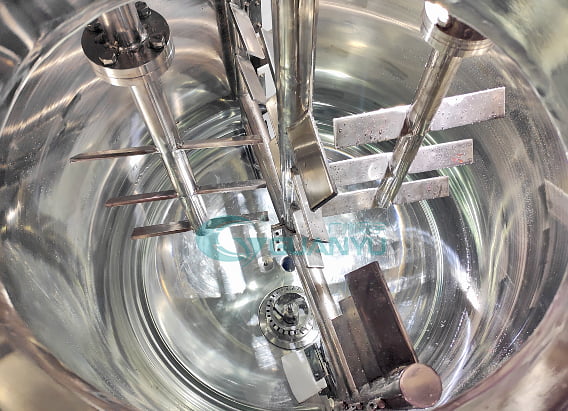

Mixing paddle
———————————
Frequency conversion speed regulation 0-62r/min, the shape of the blades will be designed according to your materials

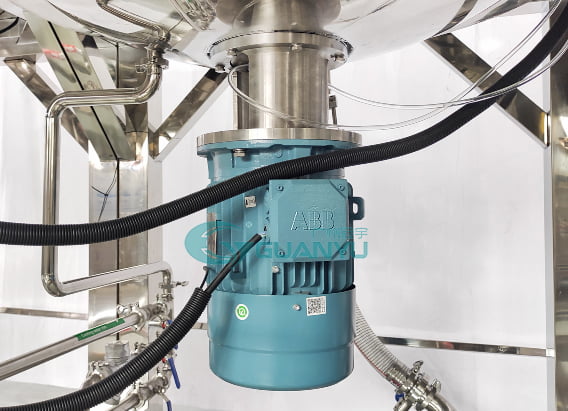

Emulsification pump
——————————
External circulation emulsification pump, high-speed shearing 3000r/min, so that the material is completely broken and mixed!

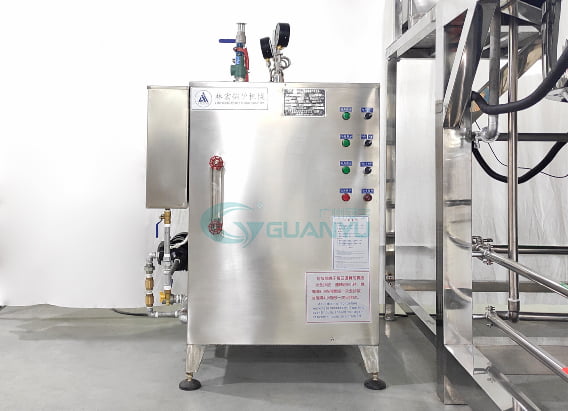

Heating
————————————
Electric heating or steam heating can be selected, and the material is heated through the interlayer to achieve the ideal stirring and emulsification state.

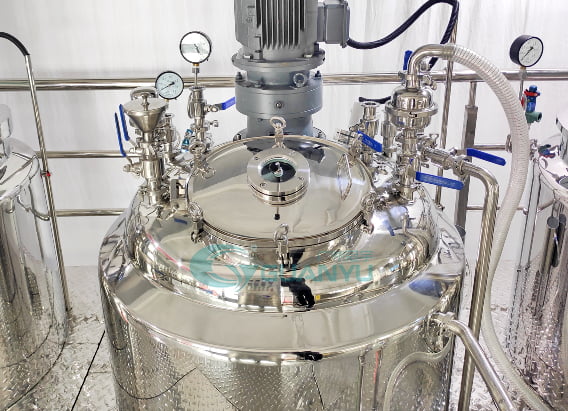

Tank
————————————
3-layer stainless steel structure pot body, GMP standard engineering, sturdy and durable, good anti-scalding effect.

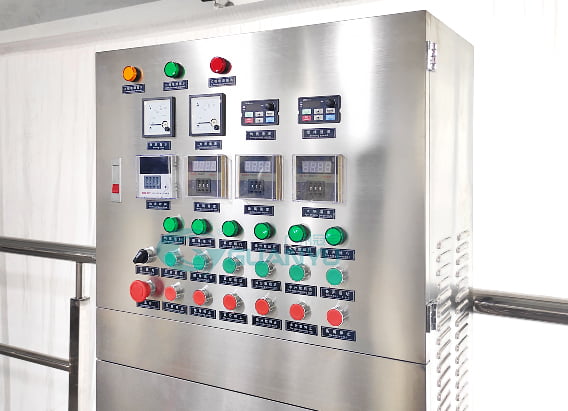

Console
——————————
The control panel displays and controls the equipment temperature, mixing, homogenization, pressure data, etc. in real time.
( Optional PLC control )
Service
——————————

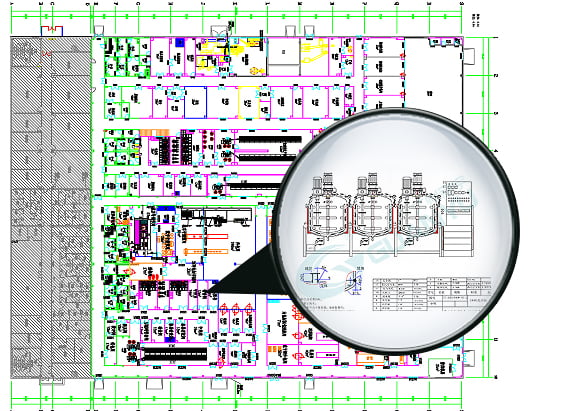

We will design drawings according to your requirements and provide one-stop solutions.
