Guangzhou Guanyu Machinery Co.,Ltd Eingehende Analyse der tatsächlichen Bedürfnisse der Zielkunden, kombiniert mit seinen eigenen Vorteilen Ressourcen, successfully developed GMP standard CE approved spices mixing machine and honey syrup mixing machine. Bei Guangzhou Guanyu Machinery Co., Ltd, it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Get in touch with us – call, fill in our online form or connect via live chat, we are always happy to help.
| Model Number: | GYE | Mischertyp: | Rührer/Homogenisator/Paddel/Mischer |
| Max. Ladekapazität: | 5-5000L | Zustand: | Neu |
| Produktart: | Cosmetic/Cream/Shampoo/Soap/Toothpaste/Detergent/paint | Anwendung: | Liquid/Viscous Fluid/ Liquid With Suspended Solids |
| Zusätzliche Funktionen: | Emulsifyer/Blending/Dispersing /Heating/Cooling | Herkunftsort: | Guangdong, China |
| Markenname: | Guanyu | Stromspannung: | 220V/380V 50HZ |
| Abmessungen(L*B*H): | cuatomized | Garantie: | Two Years |
| Kundendienst bereitgestellt: | Ingenieure stehen für die Wartung von Maschinen im Ausland zur Verfügung | Leistung: | 0.75KW~45KW |
| Zertifizierung: | CE and ISO9001:2008 | Motormarke: | ABB oder Siemens |
| Material: | Edelstahl 316L und SS304 | Oberflächenbehandlung: | Mirror Polish |
| Heizmethode: | Elektrische Heizung oder Dampfheizung | Mischrotation: | 0~65 U/min |
| Emulsify Rotation Speed: | 0~3000 R/min | Kernkomponenten: | Mischmotor/Reduzierer/Homogenisator/Thermometer |
| Optionale Komponenten 1: | Elektrischer Hot Rod/Steamer-Generator/Frequenzkonverter | Optionale Komponenten 2: | Saugförderpumpe/Lagertank |
| Zertifikat: | CE /TUV/ISO |
GMP standard CE approved spices mixing machine and honey syrup mixing machine
Anwendung
Professional Vacuum emulsifying mixer is suitable for producing materials of high viscosity such as foundation, cream and toothpaste etc. Its prominent feature is that the internal and external circulation homogenizer can make the materials work under the homogenizing status of internal circulation so as to achieve the effect of completely emulsifying the materials.
Brief Description

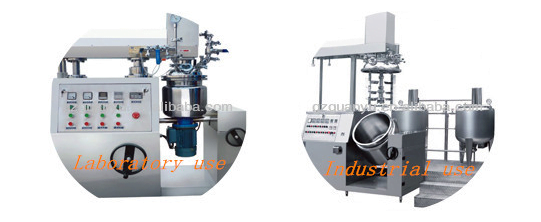

1. Vacuum emulsifying machine capacity can be customized from 5L to 3000L or more, such as 5L, 10L, 15L, 20L, 25L, 30L, 50L, 100L, 200L, 300L, 500L, 600L, 700L, 1000L, 1500, 2000L, 3000L, usw, can be customized; 5-30L usually used laboratory tests, more than 50L Usually used industrial production; vacuum emulsifying mixer can be designed CIP Cleaning system; Sight glass, air filter; the mixer usage voltage 380V,3phase,50HZ or 220V,1phase, 60HZ or others, this can be changed;

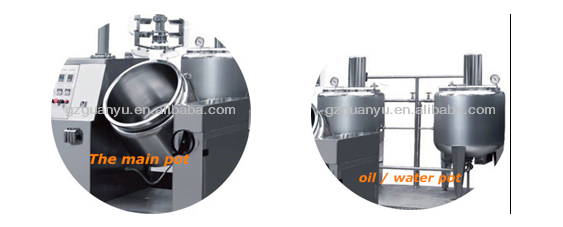

2. The whole set machine includes: Mixing pot (materials mixing, emulsion homogeneous), water pot / oil pot (materials premixed; The design of oil pot and water pot make it possible to emulsify and mix material that does not dissolves in water. The water pot and oil pot are fixed on one stainless steel frame. The frame can be put anywhere around machine according to the space of your own factory or plant.); Premixed material, under the vacuum state, using pipe connection, transport it to mixing pot;

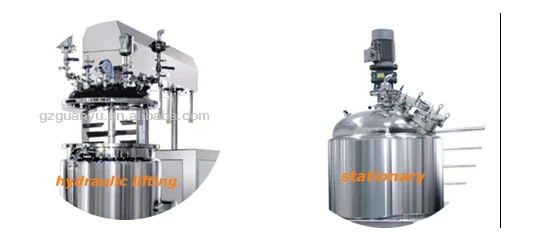

3. Top cover design includes: The machine top cover can be designed hydraulic lifting and descending (Hydraulic pump drive) or stationary (can not open);
4. Mixing way includes: Anchor type mixer, frame type mixer, paddle mixer, one-way mixer, bidirectional mixer, can be customized; The machine includes mixer and homogenizer, homogenizer is optional; homogenizer includes: upper homogenizer and bottom homogenizer; rotation speed is 0-3600rpm or more; mixer or homogenizer can be a variable speed control;
5. Control box includes: Operate can be a PLC or button;
6. Heating way includes: Elektroheizung oder Dampfheizung, the cold water circulating cooling; For the sake of safety and insulating effect are usually designed 3-layer pot wall, Special requirements 2-layer pot wall can also be designed; Wall thickness can be customized;
7. Materials includes: Main components are all made by stainless steel 316 and 304, the platform is usually non-slip aluminum alloy manufacture, also can choose stainless steel materials;
8. Discharge materials way includes: Hand control or electric control dumping the pot, pour-out materials; Use a pump to take out materials is a faster and more convenient way;
9. Motor brand includes: Siemens, ABB, Schneider, Panasonic, Mitsubishi, Fuji, Yaskawa, Sanyo or make in china;
10. Inverter brand includes: ABB, Siemens, Yaskawa, Fuji, Delta, Schneider, Emerson, Mitsubishi, Danfoss, Rockwell or make in china;
Technische Parameter
Modell | Main pot | Water pot | Oil pot | Main pot power | Hydraulic System | Vacuum pump power(Kw) | ||
Volumen(L) | Wall scraping | Homogenisator | ||||||
GYE-5L | 5L |
|
| 0.18 | 1.1 | 0.75 | 0.55 | |
GYE-10L | 10L | 8 | 5 | 0.18 | 1.1 | 0.75 | 0.75 | |
GYE-20L | 20L | 18 | 10 | 0.37 | 1.5 | 0.75 | 0.75 | |
GYE-50L | 50L | 40 | 25 | 0.75 | 4-7.5 | 1.5 | 1.5 | |
GYE-100L | 100L | 80 | 50 | 1.5 | 4-7.5 | 1.5 | 1.5 | |
GYE-200L | 200L | 170 | 100 | 2.2 | 7.5-11 | 1.5 | 2.2 | |
GYE-300L | 300L | 250 | 150 | 2.2 | 7.5-11 | 1.5 | 2.2 | |
GYE-500L | 500L | 420 | 250 | 4 | 11 | 1.5 | 2.2 | |
GYE-1000L | 1000L | 820 | 500 | 5.5 | 5 | 2.2 | 3 | |

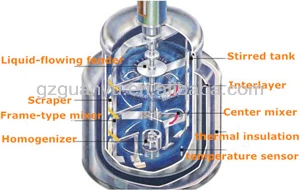

Work Principle
After the raw materials(refer to your formula) is heated and mixed in the water boiler
and oil boiler, then they draw into the emulsification boiler automatically by the vacuum pump, through the fixed middle stirrer(principal axis) & teflon scrapers residues stirrer in the emulsification boiler to emulsify ,mix and homogenize .
And the PTFE scraper sweep the residues on the wall of the boiler, to make the products of wiped off become the new interface constantly, then the blade cut off , compress,fold round ,mixing and running to the homogenizer, according to the high shear wheel and the cutting case to strong cutting off,impact,Without rules mobility, usw.
The material by cutting in the cut interstices and turn to a particle of 200nm-2um prompt, because the emulsification boiler is under vacuum state, the bubble that the supplies produce in the course of mix is taken away in time.
Besonderheit
1.To imporve the brightness and stability of the products,The raw material should be fully grinded,mixed,emulsified and homogenization via using emulsifying machine’s heating,Kühlung,Auflösung,homogenization emulsifying and Vacuum defoaming all together.
2.Using anchor type double-way scraping mixing and frequency converter to satisfied different production (formula) process requirements.
3.Air filter adopted,to avoid the dust,impurity entering the emulsifying pot.
4.Vacuum defoaming let materials meet the requirement of being aseptic. Vacuum intake(sucking) material is adopted,to aviod dust.Especially for powder materials.
5.Advanced homogenizer with unique structure and use Germany Burgman sealing to assure gloss, fine and smooth of materials. Homogenizer rotation speed(2 pole speed): 0~3000 R/min.
6.The homogenizer shall discharge at a low speed or without pressure ,and does not destroy emulsifying elements.
7.According to formula process requirements,It has heating and cooling system in pot(tank) body.Steam heating or electric heating is for your choice .
8.With hydraulic pressure lifting system,which can up and down Pot lid (cover), and can tilt and reset the pot.

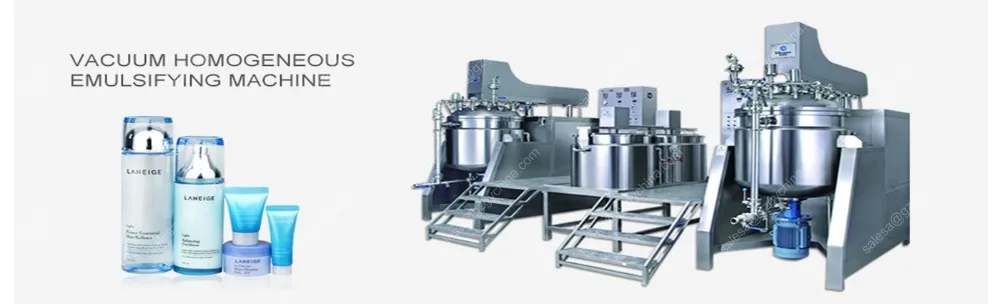

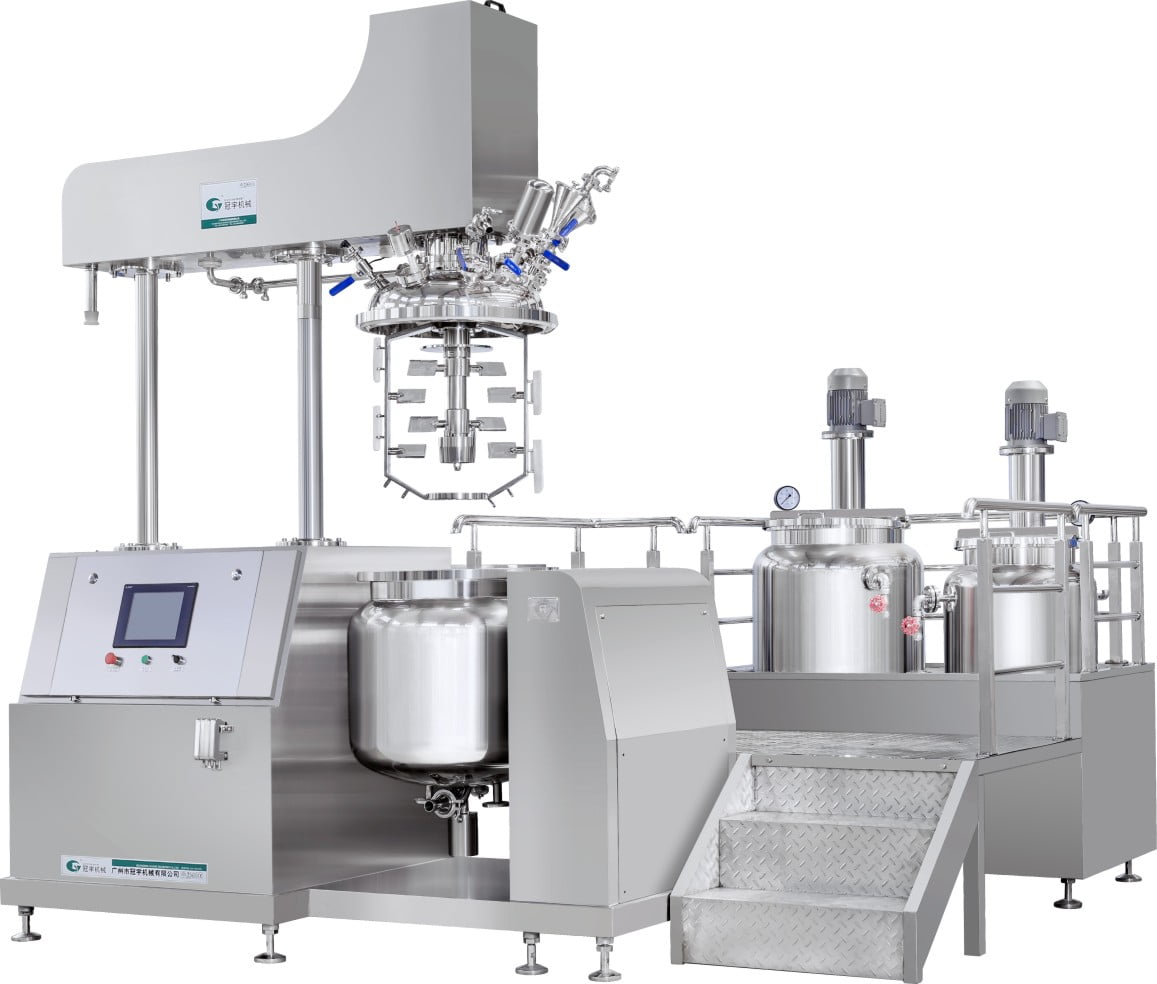

Product Overviews
GMP standard CE approved spices mixing machine and honey syrup mixing machine

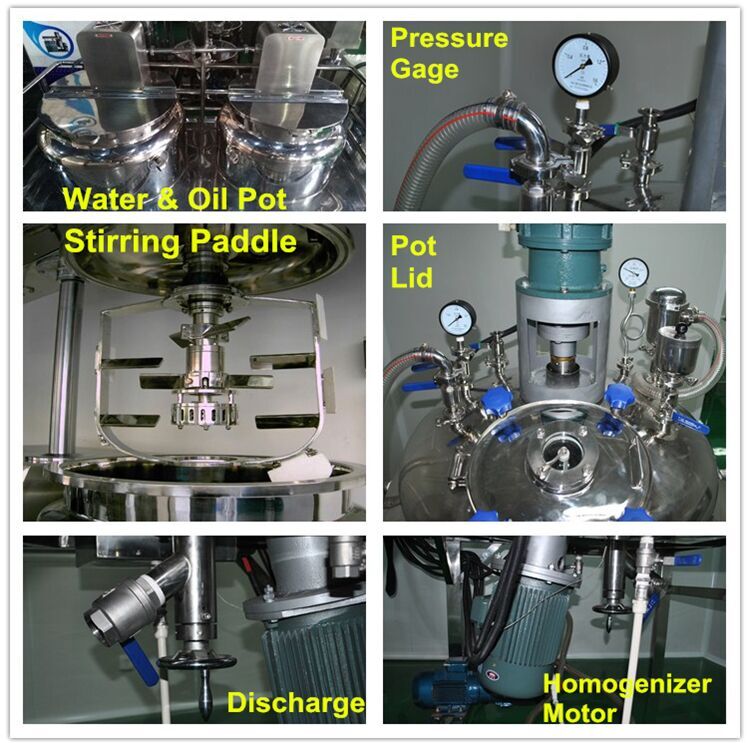

Produktdetails

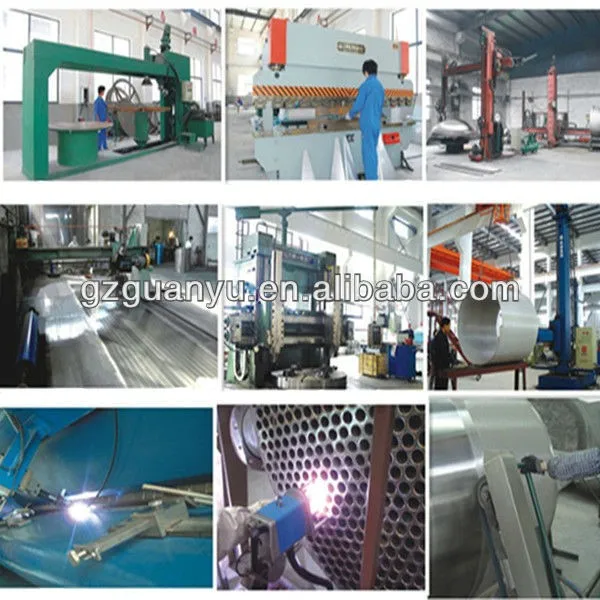

Production Flow
Why Choose Us
1.Directly competitive factory price
2.CE and ISO9001 Certificate ,GMP quality standard
3.FREE Spare parts in 1 year warranty
4.English instruction manual, video and training on line
5.Over 15 years manufacturing experience
6.OEM, ODM can be acceptable
After Sales Service
1:FREE Spare parts in 1 year warranty
2:Um 5 professional Engineers with 25 years experience in cosmetic machine industry.
3:We offer training service in customers’ factory or our factory .Training holds in our factory for free.
4:Reply you within 24 hours once customer inform us any malfunction happened. We can also arrange engineers to your factory(overseas service) to maintain the machines.
5:It is 24 hours/365 days online technical service for you.
6:80% material and components are purchased from ABB,Siemens,3M,Schneider and Omron.

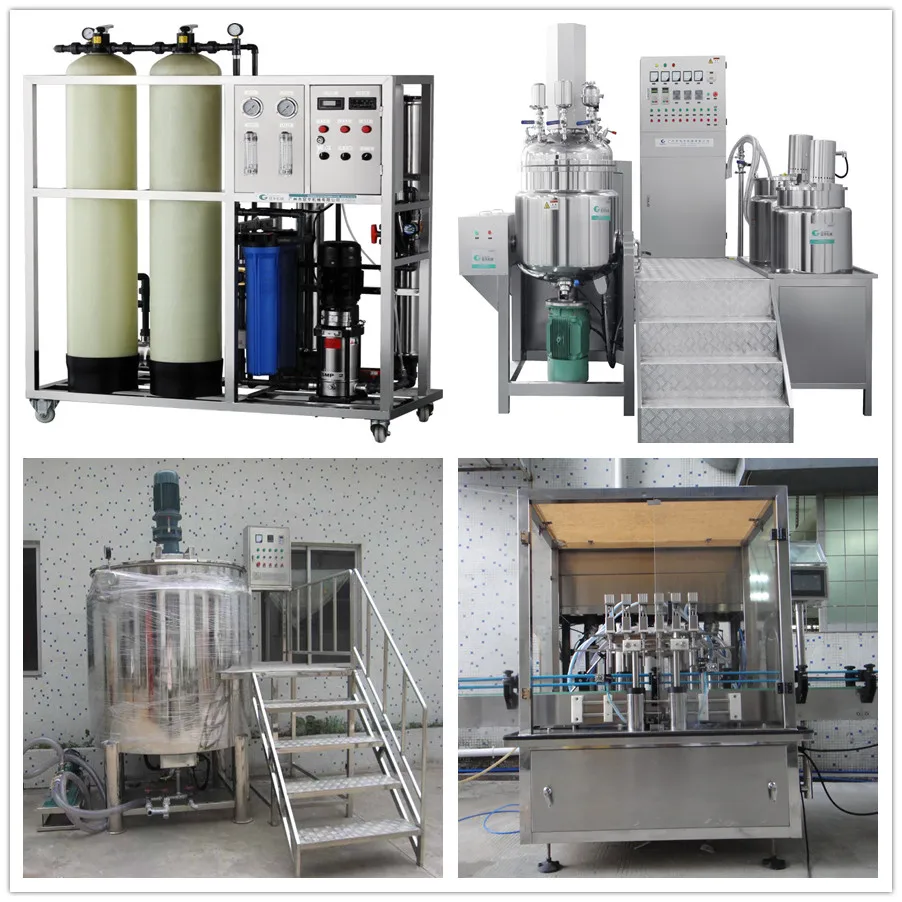

1. Vacuum emulsifying mixer machine
2. Mischtank
3. Ro water treatment machine
4. Automatic or semi-automatic filing machine
5. Storage tank
6. Vertical/horizontal pneumatic filling machine
7. Tube filling sealing machine
8. Complete line: making product—filling—capping–Aluminum foil sealing—labeling—printer date—packing–finished product.
“Quality Assurance, Professional Solution,& Best Service” is our goal. ”Customer Satisfaction is our eternal pursuit.

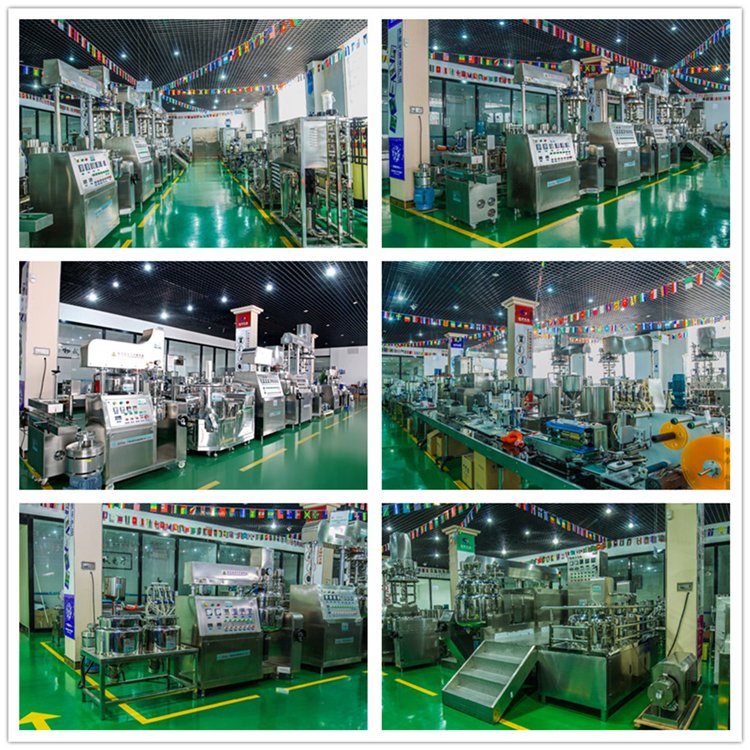

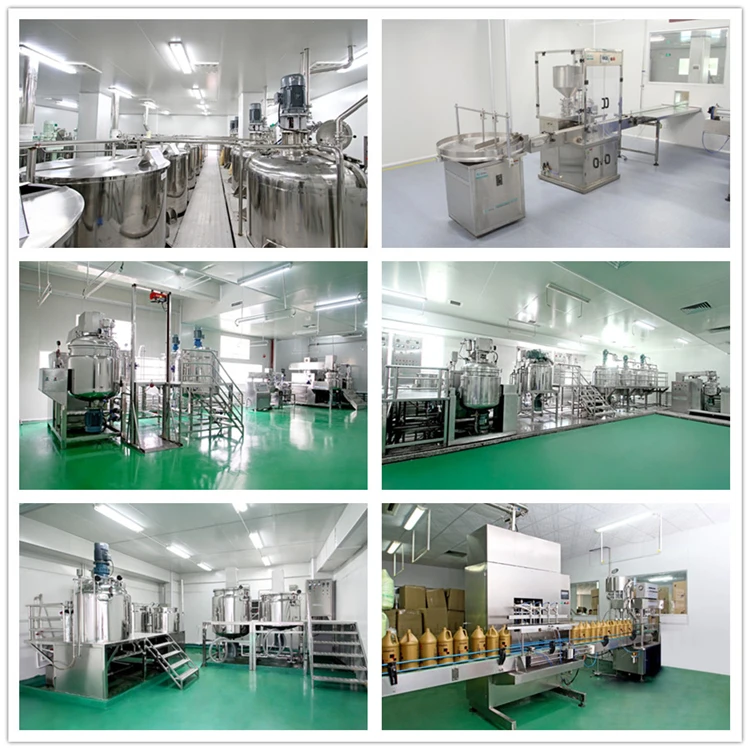

Our Showroom
Our Customer & Fair
FAQ & Contact Us
Q1: Are you a factory or a trading company?
A1: We are a factory in Guangzhou city ,China.
Q2: How can I check the quality?
A2: You can fly to our factory to inspect or we take video for you.
Q3:Dies ist mein erster Import, Wie kann ich Ihrem Unternehmen vertrauen und sicherstellen, dass ich die Waren erhalte, wenn ich bei Ihnen bestelle??
A3:We are legitimate certification company (VIP), und wir unterstützen Zahlungsbedingungen: L/C. Treuhand, um Ihre Sicherheit zu gewährleisten.
Q4:Es gibt zu viele Modelle, Ich weiß nicht, welches ich wählen soll?
A4: Welcome to contact us through TradeManager, we will recommend according to
your requirement. Ob während der Ladenschlusszeit oder am Wochenende, Bitte senden Sie uns eine E-Mail, Wir werden innerhalb von Sekunden antworten 24 Std..
Q5:What’s the payment terms?
A5: T/T,30% deposit and 70% balance before delivery. L/C.
Q6: Do I have to learn how to operate this machine?
A6: No, you just turn on it, it will work automatically.
Q7: Where can I get help on this machine?
A7: Contact us at 0086-13802539124 whenever you need help, or we can arrange oversea engineer to help.
Q8:How much is the transportation freight?
A8:We ship out your goods by sea or by air;The freight depends on the weight and size, also the destination port.
Q9: So stelle ich sicher, dass ich die Maschine unbeschädigt erhalten habe?
A9: Anfangs , Unser Paket ist Standard für den Versand, bevor Sie sich anmelden, please be sure product undamaged, ansonsten, please contact us within 2days, Wir haben eine Versicherung für Sie abgeschlossen, Wir oder die Reederei sind dafür verantwortlich!
